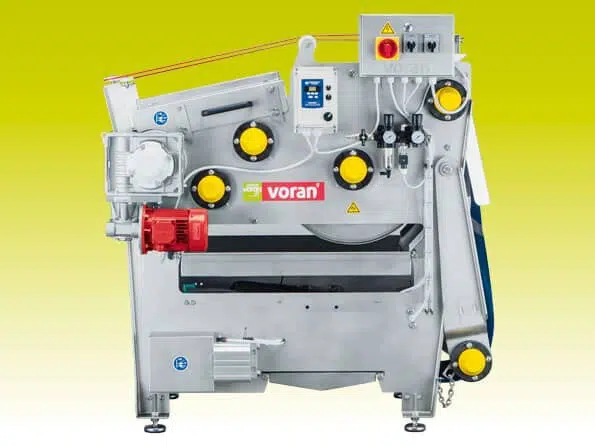

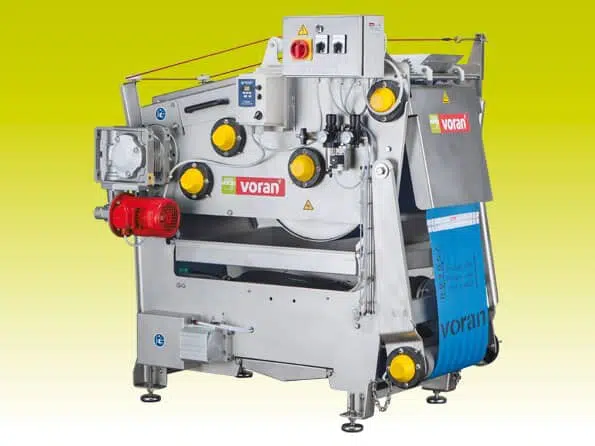

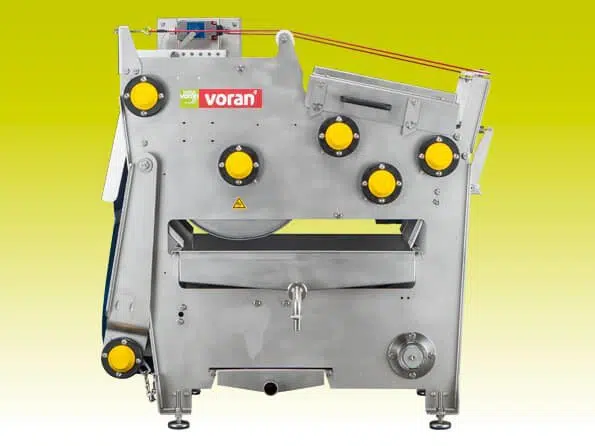

Belt press EBP 350

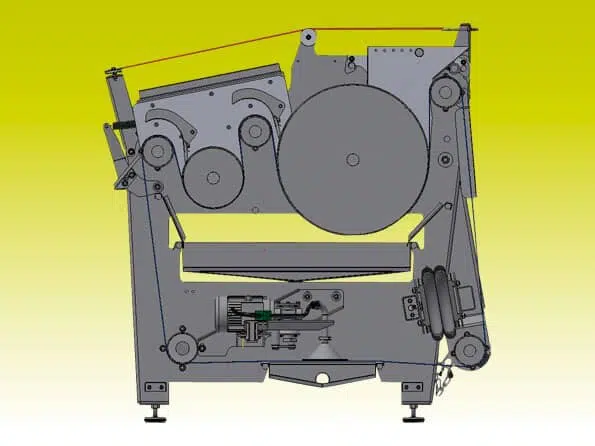

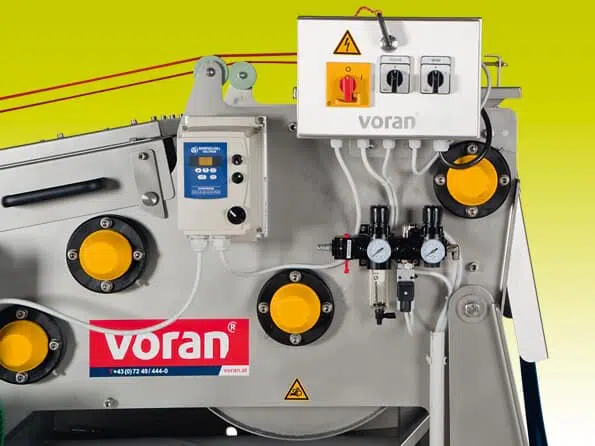

Belt press with pneumatic belt tensioner, automatic belt control and high pressure belt cleaner (high pressure cleaner required). The mash is applied to the belt in a uniform layer by the adjustable metering box, at the end of the pressing sequence the pomace is removed from the belt by a scraper.

For more information regarding this product, stock availability or shipping quotations
please use the Inquiry Tab Below.
For any other Inquires please Contact one of our team

Product Description

Belt press with pneumatic belt tensioner, automatic belt control and high pressure belt cleaner (high pressure cleaner required). The mash is applied to the belt in a uniform layer by the adjustable metering box, at the end of the pressing sequence the pomace is removed from the belt by a scraper.

TECHNICAL DATA

Nominal rating kg/h 300 kg/h
Motor rating drive motor 0,37 (0,4) washing system motor 0,12 (0,16) kW (PS)
Connected load 400V 50Hz (3-phase)
Electrical protection 16 A
Length 1280 mm
Width 870 mm
Height 1350 mm
Discharge height 1265 mm
Belt width 350 mm
Strip length 4900 mm
Conveyor width 240 mm
Conveyor height 0-50 (infinitely-variable) mm
Weight 350 kg
Material 1.4301 / AISI 304
Juice yield 70 %
Belt speed 2 m/min
Contact time 1 min
Water consumption for cleaning 2 l/min
Connection for waste water Ø48,3mm
Connection for juice outlet 1 “
Height juice outlet 420 mm
Height waste water drain 120 mm
Height pomace ejector 700 mm
