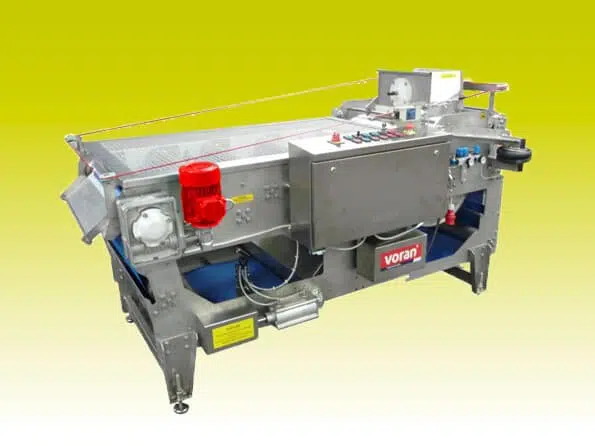

Belt press EBP 650

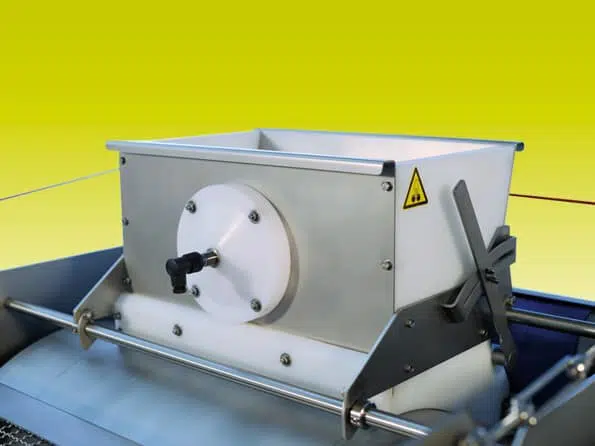

Belt press with pneumatic belt tensioner, automatic belt control, high pressure belt cleaner and optional brush cleaning system for the belt. The mash is applied to the belt in a uniform layer by the adjustable metering box, at the end of the pressing sequence the pomace is removed from the belt by a scraper. In combination with our WALC and WAR65 washing systems, the level of the metering box is automatically supervised and controlled.

For more information regarding this product, stock availability or shipping quotations
please use the Inquiry Tab Below.
For any other Inquires please Contact one of our team

Product Description

Belt press with pneumatic belt tensioner, automatic belt control, high pressure belt cleaner and optional brush cleaning system for the belt. The mash is applied to the belt in a uniform layer by the adjustable metering box, at the end of the pressing sequence the pomace is removed from the belt by a scraper. In combination with our WALC and WAR65 washing systems, the level of the metering box is automatically supervised and controlled.

TECHNICAL DATA

Nominal rating kg/h 1500 kg/h
Motor rating Drive motor 0,55 (0,75) washing system motor 0,12 (0,16) kW (PS)
Connected load 400V 50Hz (3-phase)
Electrical protection 16 A
Length 2540 mm
Width 1463 mm
Height 1460 mm
Discharge height 1460 mm
Belt width 650 mm
Strip length 8120 mm
Conveyor width 450 mm
Conveyor height 0-50 (infinitely-variable) mm
Weight 1060 kg
Material 1.4301 / AISI 304
Juice yield 75 %
Belt speed 0,9 – 1,8 m/min
Contact time 1,9 – 3,8 min
Water consumption for cleaning 3 l/min
Connection for waste water Ø75mm
Connection for juice outlet 2″
Height juice outlet 400 mm
Height waste water drain 210 mm
Height pomace ejector 840 mm
Scope of supply High pressure cleaner, compressor
