Filtrodisc Plus Lenticular Modules

Improved design with back-flush capability for longer filter life.

unavailable in your country

For more information regarding this product, stock availability or shipping quotations
please use the Inquiry Tab Below.
For any other Inquires please Contact one of our team

Product Description

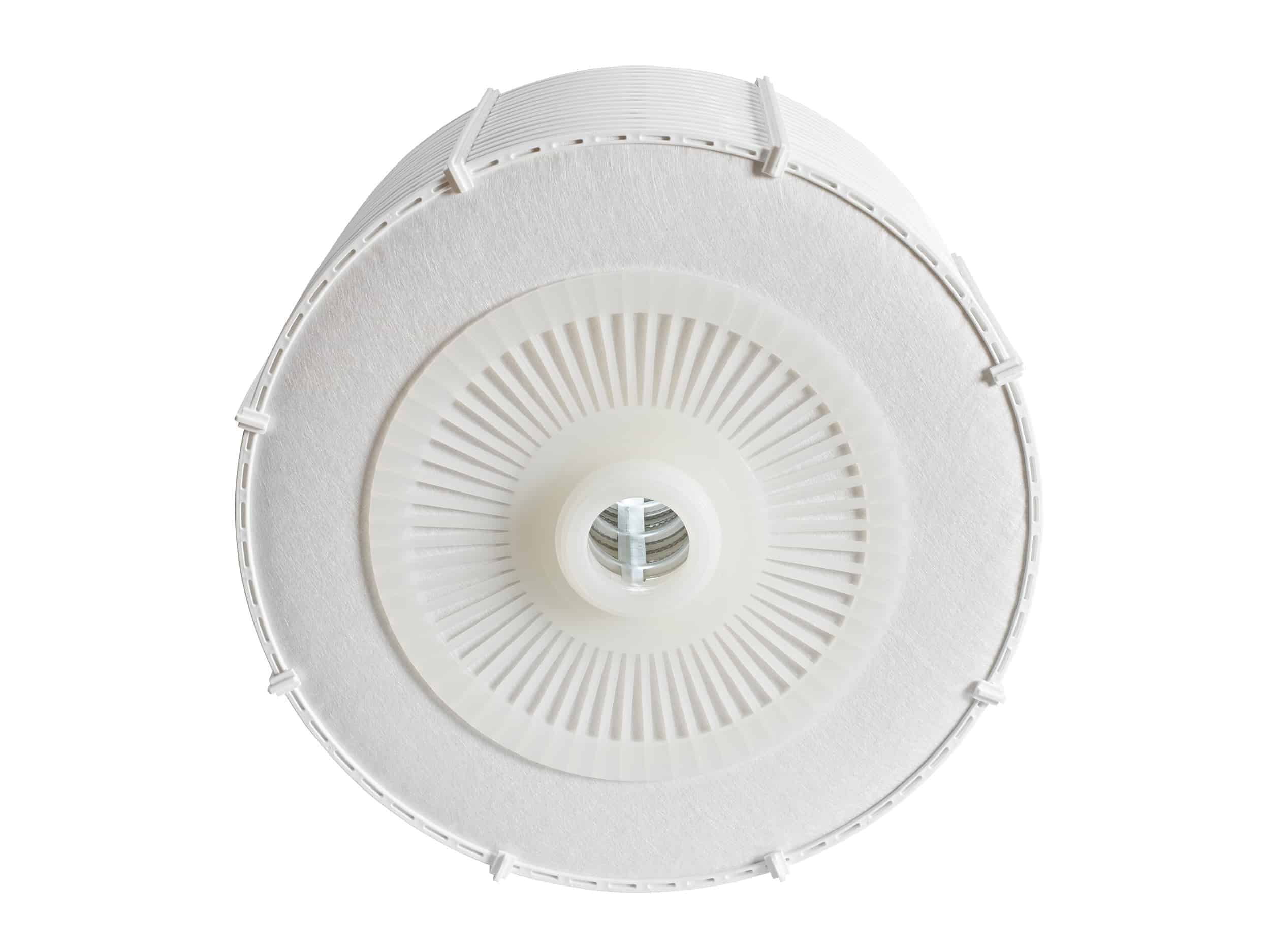

FILTRODISC™ PLUS2

BACKFLUSHABLE LENTICULAR MODULE

Depth filter modules make it possible to handle large filter areas in a simple manner and have been used in various food & beverage applications for many years. Filtration with such modules is carried out in an enclosed bell housing filter. The filter medium used in lenticular modules is a depth filter sheet. A combination of surface, depth and adsorptive filtration mechanisms lead to a high filtration performance. Depth filter products represent a cost-effective filtration solution.

With the FILTRODISC™ PLUS2, a new generation of depth filter modules is available. Due to their improved design and integrated support frame, the FILTRODISC™ PLUS2 modules can be backflushed in order to remove surface deposits more effectively. The filter media used for these modules are high-capacity Filtrox depth filter sheets (H grades) with even higher dirt holding capacity than standard grades.

Benefits

FILTRODISC™ PLUS2 modules show the following benefits which result in important cost savings:

  • Possibility of backflushing of the modules can lead to longer filter life.
  • H grades filter media grant increased filtration capacity.
  • FILTRODISC™ PLUS2 modules can be installed in regular lenticular module housings with DOE adapter type.
  • For backflushing the FILTRODISC™ PLUS2 modules, no additional stabilization parts are needed.
