Filtrox | DISCSTAR™ H Horizontal Lenticular Module Housing

Highly precise stainless steel filter housing for filter modules, developed and manufactured for everyday use. The enclosed system enables depth filtration to be carried out without drip loss.
Compared to standard vertical housings the DISCSTAR‚Ñ¢ H is turned into a horizontal position.

unavailable in your country

For more information regarding this product, stock availability or shipping quotations
please use the Inquiry Tab Below.
For any other Inquires please Contact one of our team

Product Description

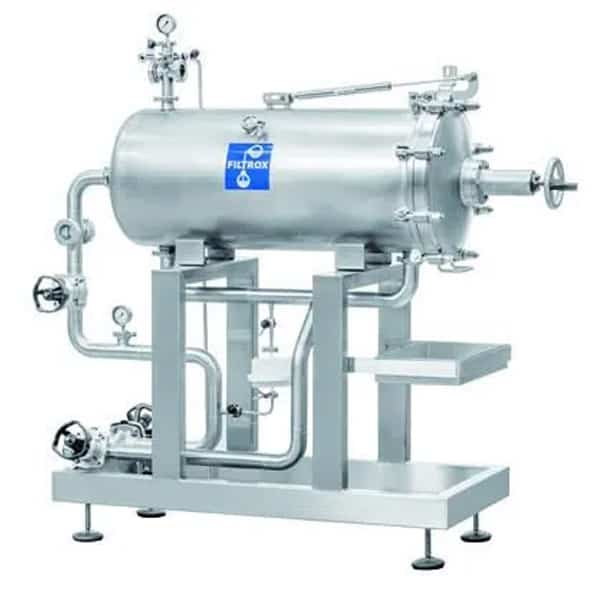

The DISCSTAR™ H is available for 16” double open ended modules with flat gaskets (DOE). It is a highly precise stainless steel filter housing for filter modules, developed and manufactured for everyday use. The enclosed system enables depth filtration to be carried out without drip loss.

Compared to standard vertical housings the DISCSTAR™ H is turned into a horizontal position. On one side there is a closure head through which the filter modules are loaded. The opening of the lid is supported by a gas-pressurized spring. To ensure a proper compression of the module stack, a compression force can be applied from the outside. No crane is needed to open the housing. Venting valve, sight glass, pipework and instrumentation are permanently installed. An optional residual filter can be installed to minimize the dead volume. The horizontal design allows a much easier and time saving operation.

The DISCSTAR™ H housing is much safer to operate and easier to handle due to an economic chest working height and easy loading and disposing of the modules.

BENEFITS
Easy replacement of modules / no need of crane or other lifting devices
Easy spent module removal and transportation
Easier to fill especially for modules with open filter media
Saves working time because of better accessibility of modules
Smaller footprint / reduce overall height compare to vertical design
No product loss due to optionally integrated residual filter
Ergonomic chest high operation
Pipework away from the operator section
Permanent vent valve pipework, sight glass and instrumentation
No center post components or loose components inside the housing
External module compression check
Skid version with two, three or more housings available
TECHNICAL DATA
Type and size of modules 16″ with flat gasket adapter (DOE)
Number of modules: 4 (optional 3)
Max. process pressure: –1/+6 bar liquid and gases
Max. process temperature: –20/+140 °C
Max. filter area: 14.4 m2 (with modules each 16 lenses)
Materials
Parts in contact with product: AISI 316L
O-Rings / Gaskets: EPDM – FDA approved
Surface treatment
Parts in contact with product: Ra < 0.8 µm, mechanical polished
All other parts: Ra < 1.6 µm, mechanical polished
Acceptance according to: Pressure vessel guidelines PED 2014/68/EU and ATEX 2014/34/EU

The DISCSTAR™ H is available for 16” double open ended modules with flat gaskets (DOE). It is a highly precise stainless steel filter housing for filter modules, developed and manufactured for everyday use. The enclosed system enables depth filtration to be carried out without drip loss.

Compared to standard vertical housings the DISCSTAR™ H is turned into a horizontal position. On one side there is a closure head through which the filter modules are loaded. The opening of the lid is supported by a gas-pressurized spring. To ensure a proper compression of the module stack, a compression force can be applied from the outside. No crane is needed to open the housing. Venting valve, sight glass, pipework and instrumentation are permanently installed. An optional residual filter can be installed to minimize the dead volume. The horizontal design allows a much easier and time saving operation.

The DISCSTAR™ H housing is much safer to operate and easier to handle due to an economic chest working height and easy loading and disposing of the modules.

BENEFITS

  • Easy replacement of modules / no need of crane or other lifting devices
  • Easy spent module removal and transportation
  • Easier to fill especially for modules with open filter media
  • Saves working time because of better accessibility of modules
  • Smaller footprint / reduce overall height compare to vertical design
  • No product loss due to optionally integrated residual filter
  • Ergonomic chest high operation
  • Pipework away from the operator section
  • Permanent vent valve pipework, sight glass and instrumentation
  • No center post components or loose components inside the housing
  • External module compression check
  • Skid version with two, three or more housings available

TECHNICAL DATA

Type and size of modules 16″ with flat gasket adapter (DOE)
Number of modules: 4 (optional 3)
Max. process pressure: –1/+6 bar liquid and gases
Max. process temperature: –20/+140 °C
Max. filter area: 14.4 m2 (with modules each 16 lenses)
Materials
Parts in contact with product: AISI 316L
O-Rings / Gaskets: EPDM – FDA approved
Surface treatment
Parts in contact with product: Ra < 0.8 µm, mechanical polished
All other parts: Ra < 1.6 µm, mechanical polished
Acceptance according to: Pressure vessel guidelines PED 2014/68/EU and ATEX 2014/34/EU
