Horizontal Screens DE Filter (2-5 sq. m.) - DCBL-BA / Beer

Horizontal screens filter equipped with D.E. manual discharge system, filtration area 2-5m2

For more information regarding this product, stock availability or shipping quotations
please use the Inquiry Tab Below.
For any other Inquires please Contact one of our team

Product Description

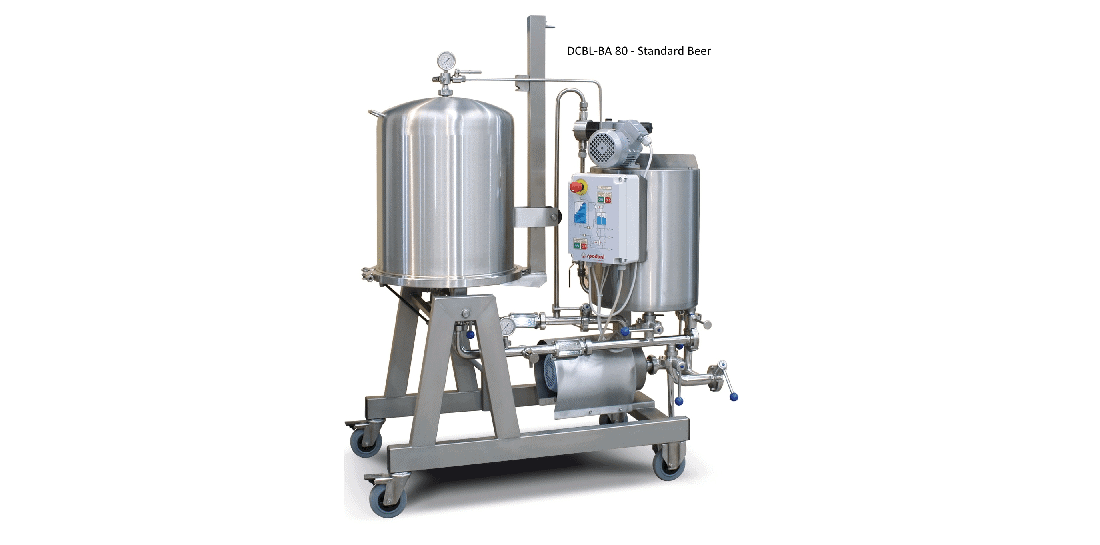

HORIZONTAL SCREENS DE FILTER (2-5 sq. m.) – DCBL-BA / BEER

Models: DCBL-BA 50/80/100/125

FEATURES:

  • SS304 construction throughout
  • Manufactured by SPADONI MECCANICA in Orvieto, Italy since 1951
  • Manual spent DE discharge
  • 1.5”TC or DN40 inlet/outlet connections with butterfly valves
  • Compact design with castors for easy mobility
  • 60 micron screens
  • Adjustable output SS304 stainless steel dosing pump
  • Integrated DE mixing paddle in dosing tank
  • Centrifugal feed pump with integrated stainless steel splash guard
  • Inlet and outlet lighted sight glasses
  • SS304 Sampling Valve
  • Patented tilting design of the bell housing which slides open on a shaft and is supported with a shock absorber (not required on DCBL/50)
  • Bell housing inlet pressure gauge
  • Outlet pressure gauge
  • SS304 stainless steel screen spacers
  • Pressure relief valve
  • Residual filter screen for filtering contents of bell housing at the end of filtration runs
  • TC style bell housing closure clamp
  • SS304 stainless steel bell housing overflow return line to dosing tank
  • Flow meter
  • Splash-proof sealed stainless steel control box
  • 1 year parts warranty
  • Spare parts in stock
