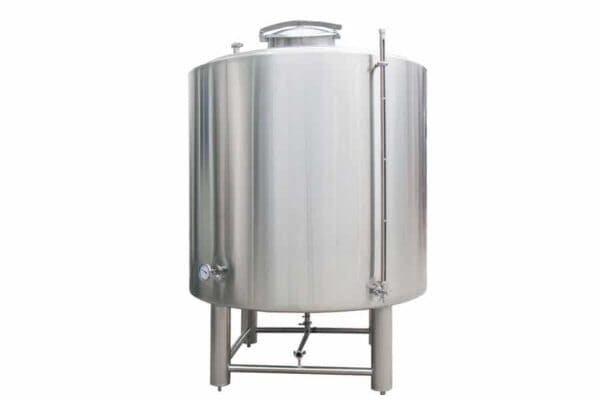

Hot Liquor Tank

Product Description

The Hot liquor tank (HLT) is mainly used for supplying the hot water for brewing and cleaning. The HLT is completed with a top dished head and all welding is done under protective-gas atmosphere; properly ground inside and out and passivated before shipment.

The hot water storage tank can be heated by electric elements or steam as required.

Steam heated hot water tank: completed with dimple jacket, 80mm insulation and welded stainless steel cladding.

Electric heated hot water tank: Assembly with electric heating tubes, voltage customized, 80mm insulation and welded stainless steel cladding.

Specifications

• Capacity available from 1bbl to 200bbl
• SS 304 construction
• Top manway
• Sanitary rotary spray ball for C.I.P.
• Overflow tube
• Mineral wool insulated
• Sanitary thermowell
• Full drain port
• Four legs with adjustable height feet, optional anti-seismic reinforcement
• Internal shell: 2B, External Shell polished #4
• Heated with steam or electric elements
