Kiesel FTF Series Progressive Cavity Must/Mash Pumps

Kiesel Flat mash Pumps FTF are specially designed for use under destemming machines, graters or mills.

For more information regarding this product, stock availability or shipping quotations
please use the Inquiry Tab Below.
For any other Inquires please Contact one of our team

Product Description

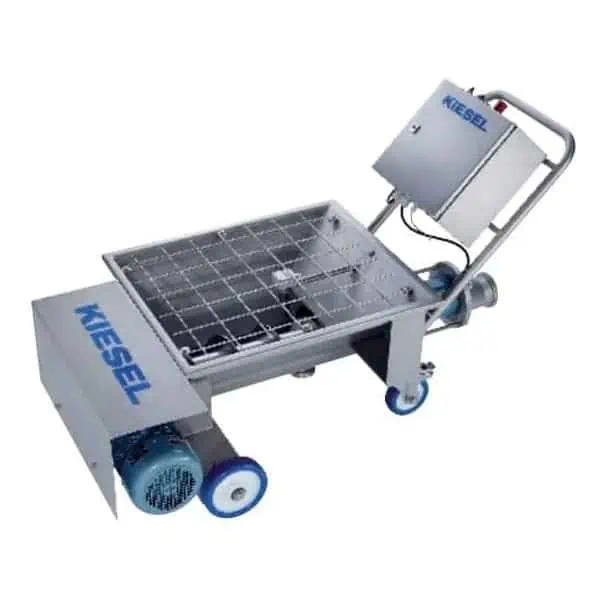

Kiesel FTF Series Progressive Cavity Must/Mash Pumps

Kiesel Flat Mash Pumps FTF are specially designed for use under destemming machines, graters or mills.

Transported Material

  • Destemmed and stemmed grape mash
  • Free-drained grape mash
  • Whole Grapes – destemmed
  • Berry, stone fruit and seed fruit mash

KIESEL Flat Mash Pumps FTF are made of stainless-steel, 304L material. This includes the hopper casing, chassis, shaft, feeding-screw, joint pieces and special throw rotor.

The Pumps run completely vibration-free, due to the light weight construction. The speed is regulated with a frequency converter, in order to achieve a gentle transfer, without shearing the transported material or causing an increase of the solids concentration.

The joints of the Pumps are designed for ease cleaning. The Pumps can run in both rotation directions for cleaning.

Type SP 12 FTF SP 16 FTF SP 20 FTF SP 24 FTF SP 30 FTF
Total length in mm approx. 1400 1660 2010 2180 2330
Hopper height in mm approx. 470 480 540 680 795
Hopper width in mm approx. 850 1150 1270 1100 1100
Hopper length in mm approx. 700 850 1100 1100 1100
Capacity max. 11 m3/hr 25 m3/hr 50 m3/hr 75 m3/hr 125 m3/hr
