Method Traditionelle - Barida Atlas M - Small Production

Up to 150 bottles/hour

For more information regarding this product, stock availability or shipping quotations
please use the Inquiry Tab Below.
For any other Inquires please Contact one of our team

Product Description

Atlas M – Workings for the classic method

Operations:

  • Disgorging
  • Dosing of liquor
  • Leveling with wine

Production: Up to 150 bottles/hour

Notes: Production is performed autonomously with the help of an operator

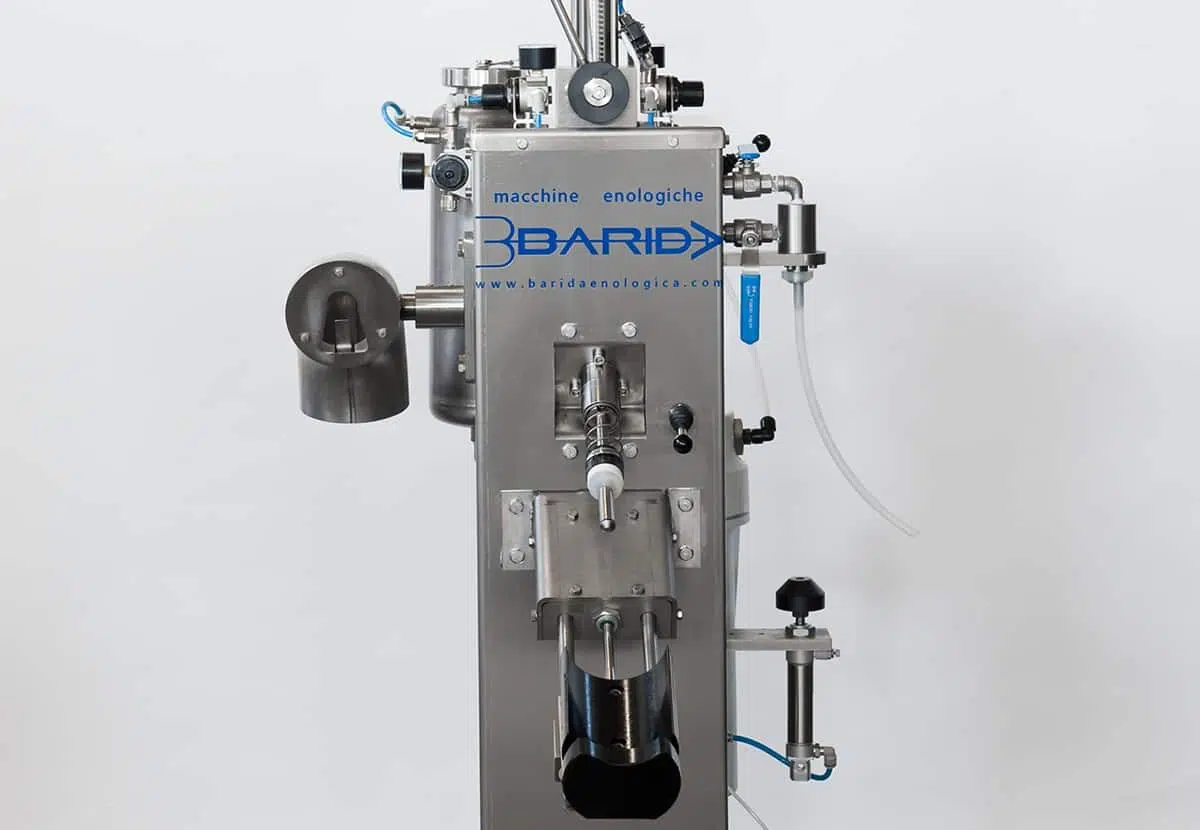

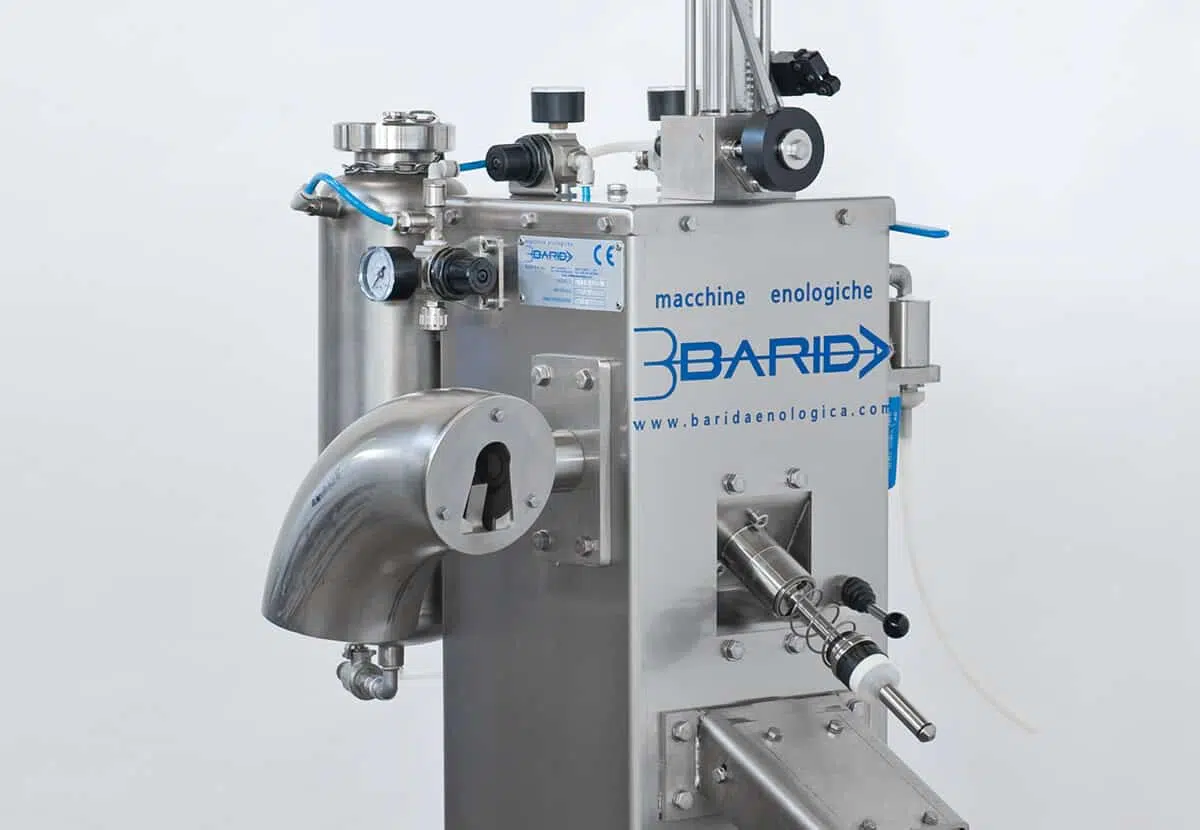

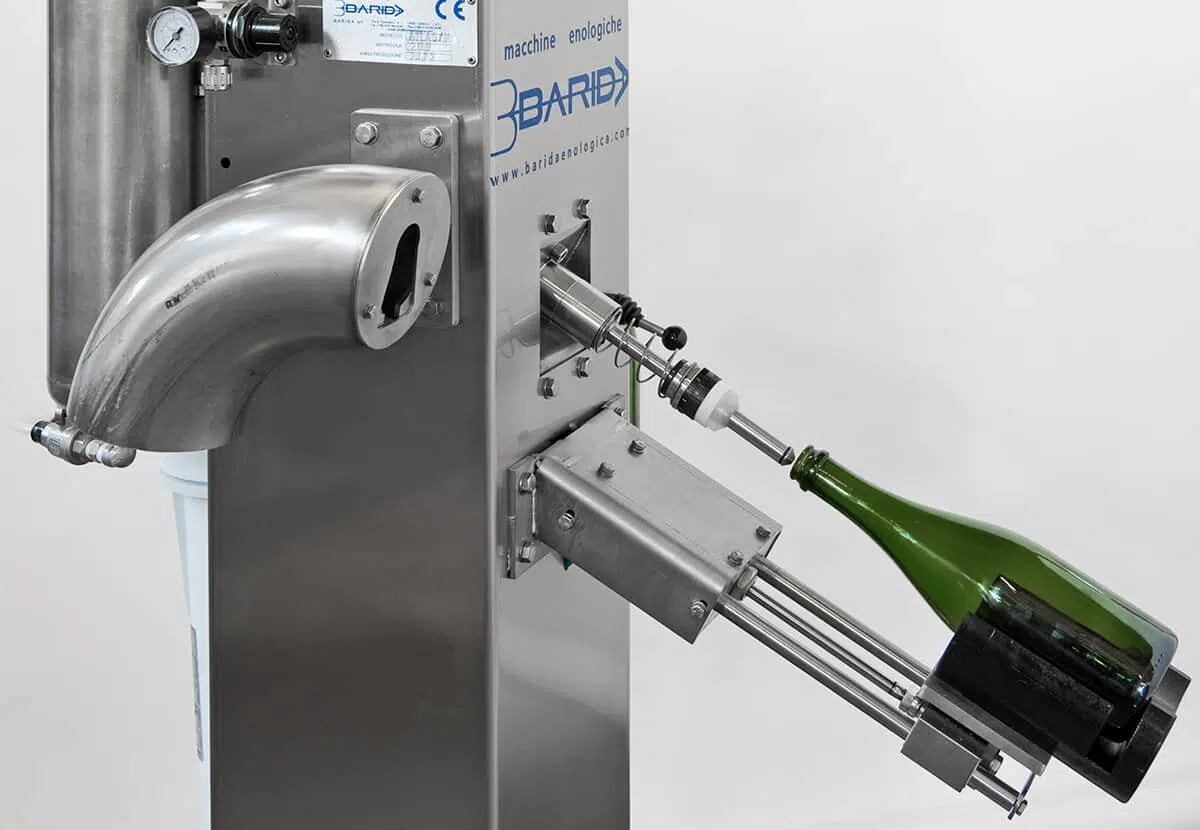

The manual monobloc ATLAS M was designed and built for the processing of wine according to the Classic Method.

Practical and handy, it consists mainly of:

  • A structure entirely made of stainless steel AISI 304 on which are installed the devices that allow the machine to run its own production cycle
  • A device for the debris operation
  • A liqueur tank equipped with inputs for compressed air and nitrogen and relative pressure gauges to check the operating pressure
  • A device for housing the bottle and its insertion on the inlet flow control valve;
  • A three-way exchange valve, with manual control, equipped with an automated system for adjusting the dose of liquor to be introduced
  • A device for housing the bottle which must be used as a wine tank required for the leveling operation
  • A valve equipped with a manual lever to control the leveling phase
