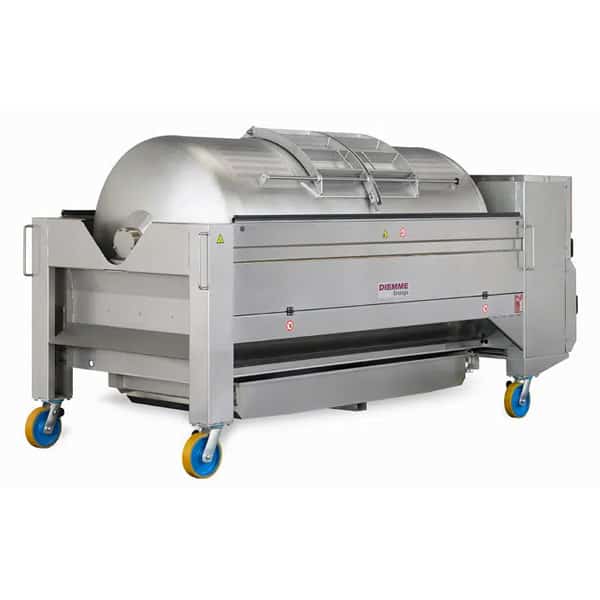

Open Slotted Presses - Tecnova XZ 15, 23, 34

High draining surface horizontal pneumatic presses

For more information regarding this product, stock availability or shipping quotations
please use the Inquiry Tab Below.
For any other Inquires please Contact one of our team

Product Description

About Tecnova XZ Pneumatic Presses
  • Horizontal pneumatic press with side membrane certified with slotted AISI 304 stainless steel.
  • High draining surface thanks to a high slots number placed along the surface.
  • Large double door manually opened and closed with mechanical safety lock.
  • Pressing membrane consisting of heavy fabric coated with a food grade polymer, it inflates totally even in the absence of product, no minimum load required.
  • Quick fastening system without perforation of the membrane.
  • Frame entirely made of AISI 304 stainless steel with large juice collecting pan and side covers can be opened for cleaning.
  • Machine equipped with compressor for membrane infl ation and blower for vacuum.
Tecnova XZ 15
  • Traditional operator interface with integrated PLC, equipped with control push-button and display.
  • 6 pressing programs are stored in the PLC and a “rocking” system for tank oscillation.
Tecnova XZ 23/34
  • Simple and user-friendly operator interface with “Touch-Screen” to easily access to programming pages.
  • It allows the management and programming of all working cycles and monitoring of the working cycle and press status.
  • 16 pressing programs are stored in the PLC and a “rocking” system for tank oscillation.
