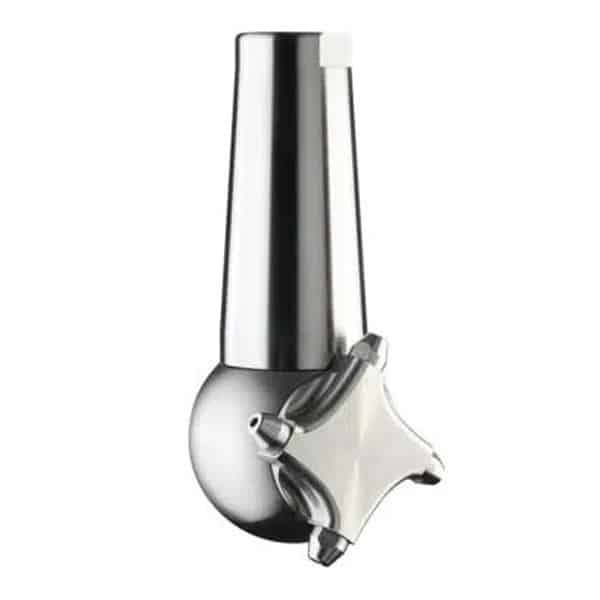

Orbital 360 Spray Head

GEA Breconcherry’s orbital cleaners operate on two axes; rotating horizontally and vertically.

For more information regarding this particular product
please use the Inquiry Tab Below.
For any other Inquires please Contact one of our team

Product Description

Orbital Tank Washer – Typhoon
  • GEA Breconcherry’s orbital cleaners operate on two axes; rotating horizontally and vertically.
  • Hygienic design
  • Low maintenance
  • FDA conform and ATEX exempt
  • Economic flow rates
  • Long dwell time jets
  • Energy-saving drive technology
  • Different nozzle diameters
  • Self-cleaning nozzle
  • Monitoring by rotation sensor (optional)
  • Preferred mounting position: any
  • Available for tank safety system VARITOP®
Versatile & Unique
  • The tank washer’s ultra sleek design, is designed to be one of the most powerful, and versatile cleaning units in it’s class.
  • The sleek, smooth exterior, combined with the unit’s self cleaning abilities, provides an ultra hygienic exterior surface suitable for use in the most hygiene conscious environments.
  • The unit is powered by a simple turbine drive, resulting in low maintenance and very low running costs.
  • The constant, repeatable and validateable action of the unit provides very powerful, stable jets with high dwell times, maximising chemical contact time and mechanical energy.
  • When combined with the new Veri-Clean validation system, the package makes the perfect jetting cleaning system.
Operation
  • Cleaning fluid powers a turbine mechanism which drives the vertically aligned gearbox.
  • The controlled rotation of the nozzles creates a spiral cleaning pattern, which builds to cover the entire surface of the vessel.
  • The cleaning pattern is predictable, reproducible and verifiable.
  • Functionality of the unit can be enhanced by the addition of the “Veri-Clean” validation system.
