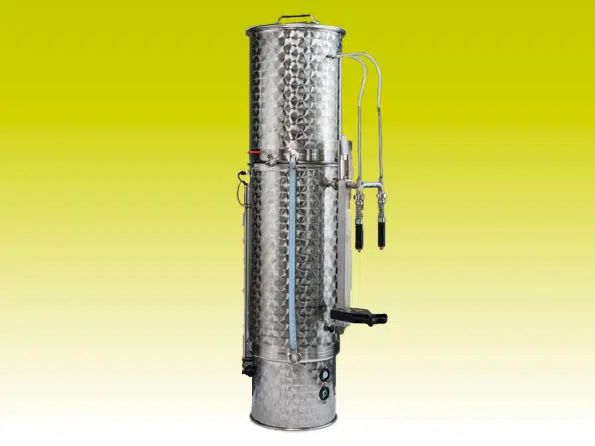

Pasteurizer PA 180 E (electric)

Electro-pasteurizer with heating coil and tube heat exchanger. Straightforward operation thanks to manual flow control and digital display for supervising temperature. Using the 2-bottle filling system allows different sizes of bottle to be filled at the same time. This pasteurizer is also available with a filling system for Bag in Box.

For more information regarding this product, stock availability or shipping quotations
please use the Inquiry Tab Below.
For any other Inquires please Contact one of our team

Product Description

Electro-pasteurizer with heating coil and tube heat exchanger. Straightforward operation thanks to manual flow control and digital display for supervising temperature. Using the 2-bottle filling system allows different sizes of bottle to be filled at the same time. This pasteurizer is also available with a filling system for Bag in Box.

Technical Data

Nominal rating l/h 180 l/h
Electrical power 18 kW
Connected load 400V 50Hz (3-phase)
Electrical protection 32 A
Width 440 mm
Height 1580 mm
Weight 43 kg
Material 1.4301 / AISI 304
Water content 100 l
Juice vessel 65 l
Scope of supply incl. 2 bottle filling valves or filling system for Bag in Box

Videos

Pasteurizing and filling with pasteurizer PA180
