Premia WS Top 540

Versatile semi-automatic filling machine for vacuum bags that are separate (Single) or attached together in a ribbon (Web)

For more information regarding this product, stock availability or shipping quotations
please use the Inquiry Tab Below.
For any other Inquires please Contact one of our team

Product Description

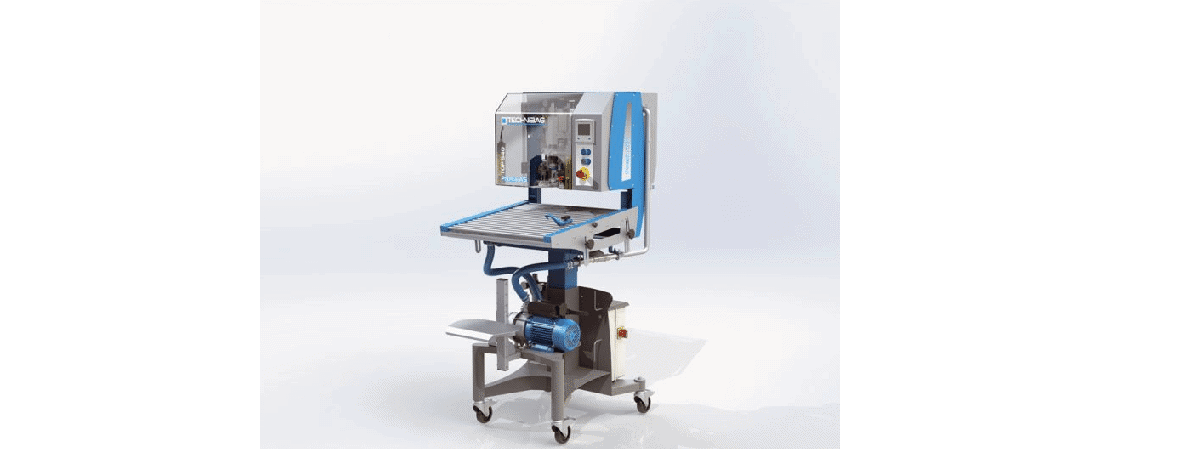

Premia WS Top 540 Versatile Semi-Automatic Filling Machine



Versatile semi-automatic filling machine for vacuum bags that are separate (Single) or attached together in a ribbon (Web)

An ideal filling machine for your medium-sized and large productions, the PREMIA WS filling machine allows managing a variety of recipes and maintaining high rates up to 540 three-liter vacuum bags per hour in the Web mode.

The semi-automatic PREMIA WS filling machine is designed to meet filling needs for vacuum bags from 2 L to 20 L (in “Web” and “Single” mode), Pouches from 1.5 L to 5 L (in “Single” mode) and Cheertainer® recipients (in “Web” and “Single” mode). It can be used for all types of liquids and semi-liquids for both food and non-food products.

Specificities

  • Automatic operation without manual feeding of the bag in Web mode.
  • Start of cycle (DAS safe and automatic start-up), removal of tap, creating a vacuum in the pouch, metering and filling, nitrogen injection and/or sweeping, reinsertion of tap, ejection of full pouch.
  • Cutting assistance in Web mode and automatic presentation of the next pouch.
  • Box holding helper *Placed on the free rollers: facilitate the introduction of the bag by keeping the box in good position on the conveyor. The operator has free hand after the box is formed.
  • Greater efficiency and comfort, from the start of the filling cycle to crating.

Integrated box support conveyor

  • Integral with the filler
  • In stainless steel
  • Can be positioned either at left or right of the boxing station, depending on line direction
  • Have a depth adjustable stop and can accept box from 3 to 20 L.

Web / Single modes

  • « Web » mode: Vacuum bags attached to each other in a ribbon are automatically fed to the machine.
  • « Single » mode: Individual vacuum bags are fed separately to the machine.
