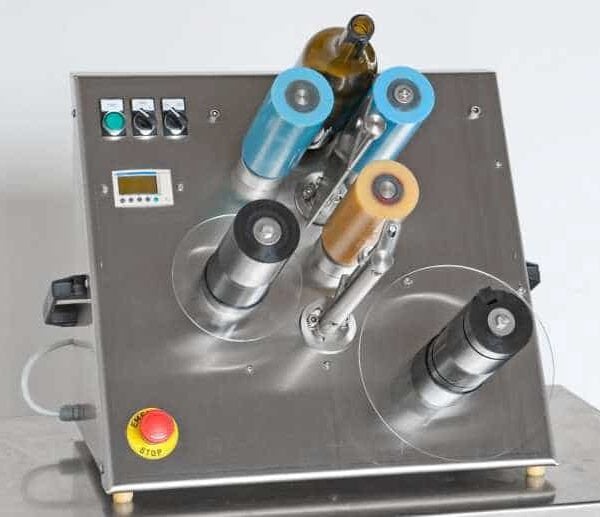

Semi-Automatic Bench Top Labeler ET-LAB

Affordable, Simple to Set-up and Easy to Operate for Single or Front & Back label applications.

For more information regarding this product, stock availability or shipping quotations
please use the Inquiry Tab Below.
For any other Inquires please Contact one of our team

Product Description

  • Thevsemi-automatic bench-top labeler model ET-LAB is designed to apply self-adhesive
    labels from a single label reel/webbing.
  • The labeler can apply single or front & back labels from the same label reel on cylindrical bottles and containers. A full wrap around label is possible as well.
  • Accurate spacing adjustment between front and back label application for easy centering.
  • Labeler body frame made from AISI 304 stainless steel.
  • Control panel with manual switches and a Siemens PLC.



Technical Specifications:

  • Power 110 / 1-PH / 60 Hz
  • Installed Power: 0.25 kW
  • Weight 35 Kg
  • Labeler Dimensions 600 x 550 x 440 mm
  • Capacity: 600-700 bottles / hour
  • Diameter of the containers 65 – 115 mm
  • Max height of label reel 180mm (max label height approx. 170mm)
