Sterile filler for wines, juices and other liquids
Professional fallpressure fill valves
The bottle filling process starts automatically when a bottle is pushed under the valve
Filling stops automatically once the desired fill height is reached
Easy to adjust the bottle height, bottle diameter and fill height

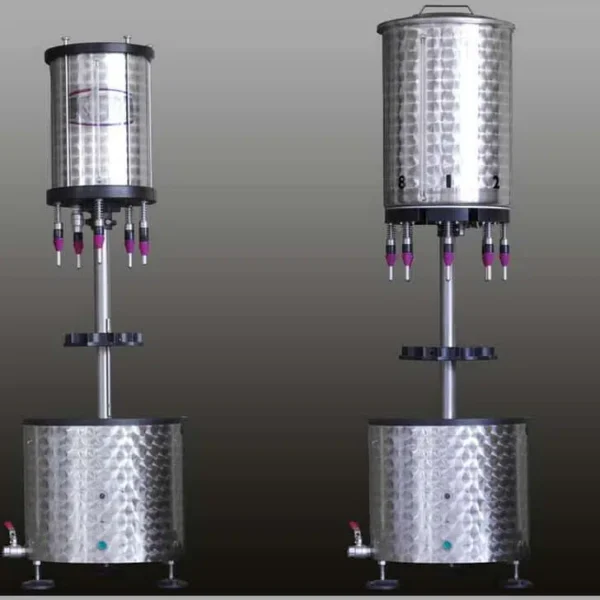

Plexiglas holding tank as standard on TA5 and stainless steel for the TA8
Optional variant with stainless steel holding tanks, which are resistant to steam cleaning
Bottle centring plates available for special bottles (square, magnum)
Infinitely variable electric drive
Technical Data
TA 5
TA 8
Filling valves
5
8
Filling capacity approx.
750
800
Tank volume (l)
26
50
Bottle height up to (mm)
500
500
Bottles Ø mm
40-120
40-120
Dimensions
Ø 500 x 1620
Ø 500 x 1620
Weight (kg)
34
50
Electrical supply
230V/0.1 kW
230V/0.1kW
ROTARY FILLERS TA10 / TA14
Pressure bottle filler with 10 or 14 filling stations
Bottles are loaded manually
Also optionally available as a fully automatic variant with feed and discharge belts
Electric tank height adjustment to easily fit different bottle heights and fill levels
Easily replaceable starwheel for different bottle diameters
Electronically controllable filling output
Integrated automatic safety switch-off function
Automatic bottle transfer (e.g. to optional accumulating roller belt)
Made of stainless steel, which makes it fully resistant to steam cleaning
Also available as a bottle filler for hot juices
Technical Data
TA 10
TA 14
Fitting valves
10
10
Filling capacity approx. (l/h)
1200
1600
Capacity approx. (bottles)
1600
1600
Tank volume (l)
90
90
Bottle height (mm)
200-500
200-500
Bottles Ø (internal, mm)
55-120
55-120
Dimensions (LxWxH)
1200x900x2000
1300X1000X2000
Weight in kg
210
210
Electrical supply
230V
230V
OPTIONS AVAILABLE
FOR TA 10 & TA14
Feed/discharge conveyor belts
Electric fill level monitor
Station for superimposing CO2 and fill height levelling after the filling process
Mobile stand
Add-on kit for filling bottles with hot liquids (digital temperature gauge, etc.)
Bottle pre-evacuation with inert gas injection (fully automatic variant required)
Sterile filter cartridge for tank ventilation
Additional Information
FOR TA 10 & TA14
• Feed/discharge conveyor belts • Electric fill level monitor • Station for superimposing CO2 and fill height levelling after the filling process • Mobile stand • Add-on kit for filling bottles with hot liquids (digital temperature gauge, etc.) • Bottle pre-evacuation with inert gas injection (fully automatic variant required) • Sterile filter cartridge for tank ventilation
