STS S2/L Labeller

Adhesive linear labeller with 2 labeling stations for front and back label application from the same roll or two separate coils.

For more information regarding this product, stock availability or shipping quotations
please use the Inquiry Tab Below.
For any other Inquires please Contact one of our team

Product Description

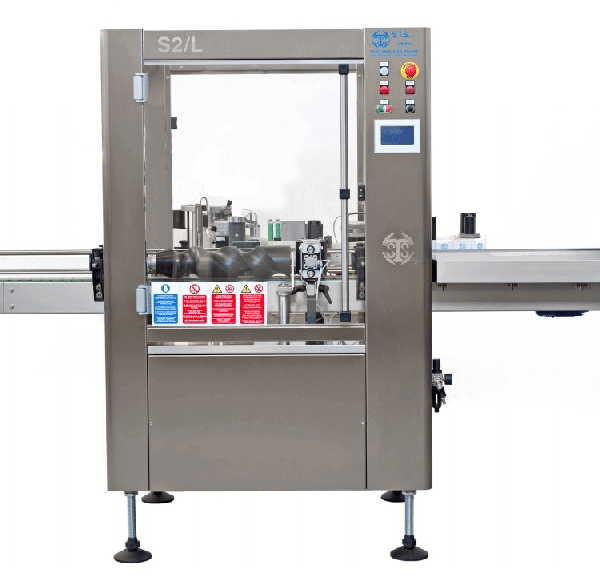

STS S2/L Labeller

MAIN FEATURES



Adhesive linear labeller with 2 labeling stations for front and back label application from the same roll or two separate coils.

Machine equipped with:

  • Labeling stations with stepper motor in direct current to allow perfect label spacing
  • Suitable for labeling cylindrical bottles with a diameter from 60 to 110 mm (with standard equipment)
  • Machine built entirely in stainless steel with some aluminum parts, anti-scratch and anti-corrosion varnishes
  • Machine to be inserted in line

APPLICATIONS

The possible configurations make the labeling machine suitable for applying in adhesive:

  • Single label
  • Front label and back label
  • Wraparound label
  • Neck strap
  • Stamp

On cylindrical bottle:

  • Centering notch
  • Application of a second label onto a bottle already labelled

OPTIONAL

  • Capsule distribution tray synchronized to the labeller with cap presence sensor
  • Capsule rolling head or capsule heat shrinking head
  • Pneumatic stamper for batch-date-vintage
  • Hot printer
  • Paper passage 200mm
  • Conveyor, drive motor and collecting plate
Template Hourly Production
(B/h)
Heads
(N°)
Labeling Heads
(N°)
Bottle
min-max (mm)
Dimensions
(LxPxH) (mm)
Weight
(Kg)
Tape Dimensions
(BxHxL) (mm)
Worktable height
min-max (mm)
Collection Plate
(mm)
S2/L 1500 / 2 60/100 1135/940/1900 500 100x120x2200 950/1050 500/600
