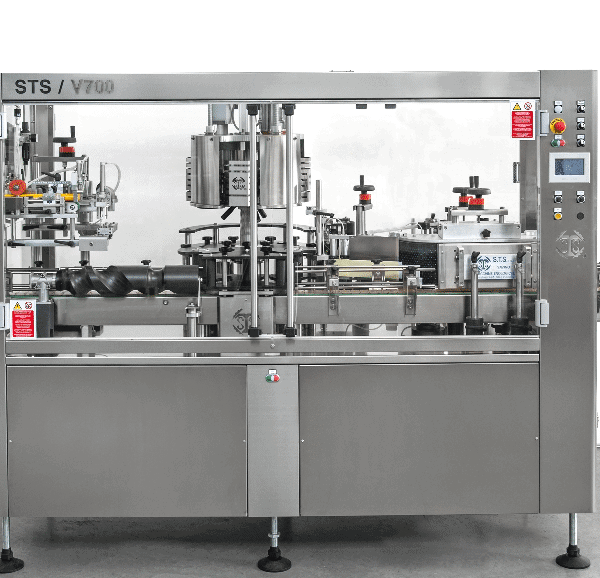

STS V700 Wine Bottle Labeller

Vacuum belt wine bottle labeling station for application of self-adhesive labels, 4-head capsule application turret with capsule rolling or heat shrinking heads

For more information regarding this product, stock availability or shipping quotations
please use the Inquiry Tab Below.
For any other Inquires please Contact one of our team

Product Description

STS V700 Wine Bottle Labeller

MAIN FEATURES

Capsule distribution tray with synchronized application head, 4-head capsule application turret with capsule rolling heads and/or capsule heat shrinking heads, vacuum belt labeling station for application of self-adhesive labels. Two labeling stations with stepper motors to ensure excellent label spacing. Front back labels can be applied from the same or separate reels.

Machine equipped with:

  • Vacuum belt labeling station
  • Two labeling stations for front/back label from the same or separate reels
  • High capacity capsule tray
  • Long-lasting capsule dispenser
  • Rotary capsule application turret with 4-thermal heads and emergency lifting system
  • Rotary capsule application turret with 4 rolling heads
  • Inlet spacing screw for a cylindrical bottle size (60mm-110mm diam)
  • Rotary turret change parts for a single bottle format

APPLICATIONS

The possible configurations make the labeling machine suitable for applying adhesive in the following combinations:

  • Front label
  • Front label and back label
  • Front label, back label and second back label

OPTIONAL

  • Counter labeling stations
  • Hot printer
  • Ink-jet printer
  • 200mm paper pass
  • Conveyor, drive motor and collecting plate
Template Hourly Production
(B/h)




Labeling Heads
(N°)
Bottle
min-max (mm)
Dimensions
(LxPxH) (mm)




Tape Dimensions
(BxHxL) (mm)
Worktable Height
min-max (mm)
V700 3500 1-3 60/110 3500x1000x1900 100×120 950/1050
