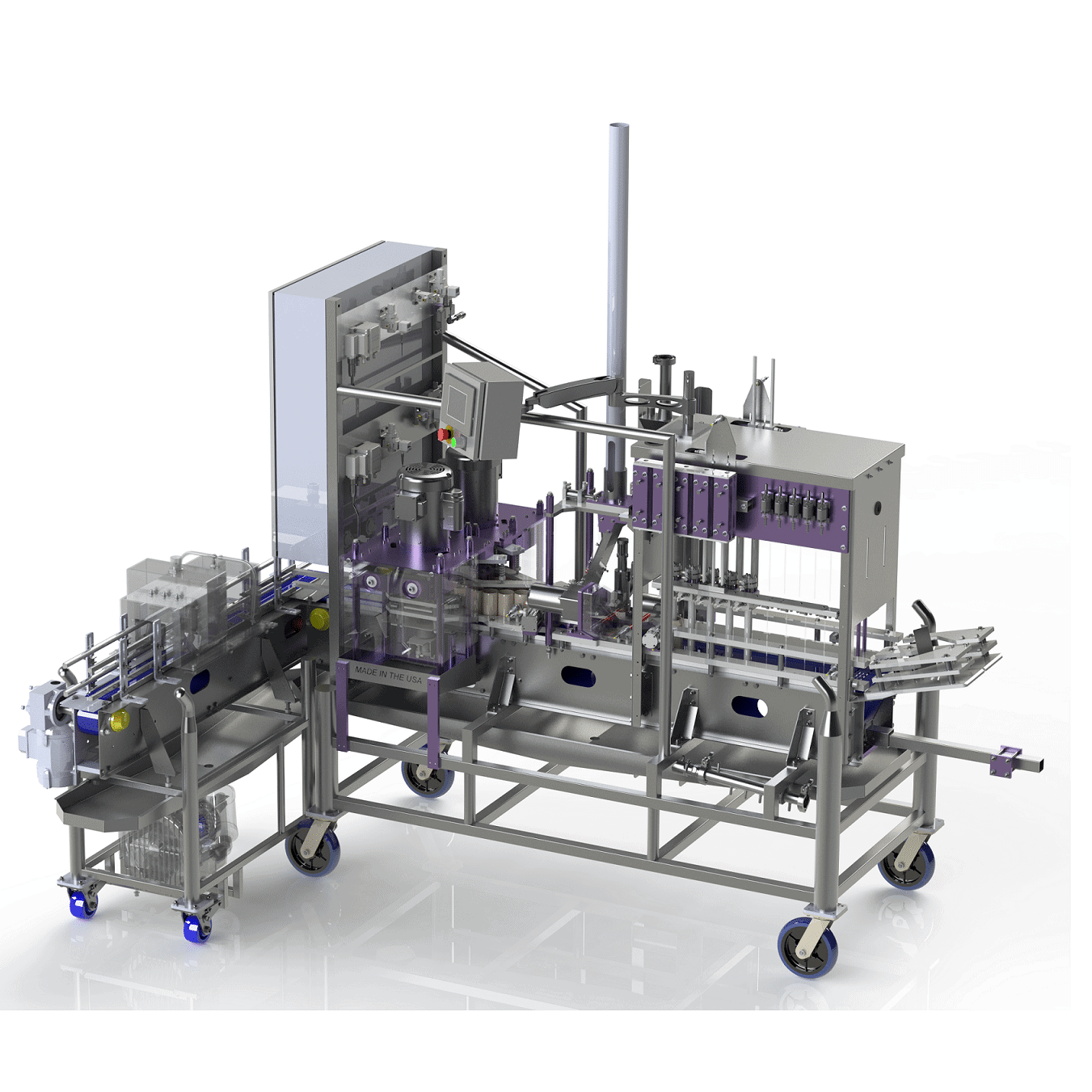

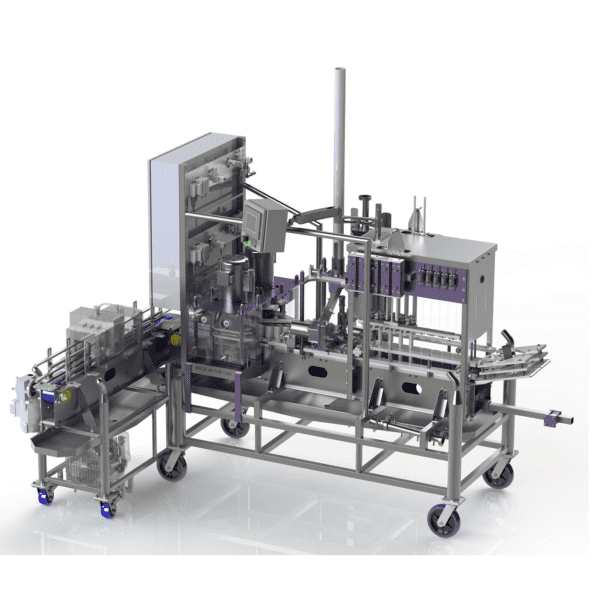

The Roaring Fork RF-80

Dual-lane canner, fastest Twin Monkey system, Start with this model or start with the RF-40 and later upgrade in the field.

For more information regarding this product, stock availability or shipping quotations
please use the Inquiry Tab Below.
For any other Inquires please Contact one of our team

Product Description

The Roaring Fork RF-80

“Dual-lane canner, fastest Twin Monkeys system. Start with this model or start with the Animas and later upgrade in the field”

Equipped with:

  • Precise volumetric flow meters for fill levels repeatable to ±2g
  • Patent-pending cam-less wedge seamer: fast, repeatable; low maintenance
  • Lid applicator with CO2 blanket generator; very reliable
  • Intuitive operator color touch screen
  • Washdown systems for easy cleaning

5-Step Oxygen Reduction using:

  • Closed fill tubes that do not re-acquire air between fill cycles
  • Pre-fill purge station that clears air out prior to fills
  • Short paths from fill to seam
  • CO2 blanket generator when lids are placed on foam
  • Dial-in foam/fill levels for individual fill head control

Capabilities

  • Fully automated from empty can infeed to finished can outfeed
  • Simple/quick change between 12oz and 16oz cans
  • (other sizes can be specified at time of order)
  • Lids placed on foam
  • Designed for ease of maintenance
  • Adjustable timers for all system functions
  • CIP/SIP for fill system

Specs

  • Throughput: 80+ cans/minute
  • Dimensions: 82”L x 36”D x 78”H
  • Weight: 950 lbs
  • Can Sizes: 12 oz. and 16 oz. standard, others available on request
  • Construction: 304 stainless steel and anodized aluminum

Utilities:

  • Power: 120V and 208-240 1-phase options available
  • Controls Air: 90 psi 2.2 cfm of clean, dry air (4.5 for San Juan)
  • CO2: 20 psi 1 cfm of CO2
